Machining Center

High productivity

Each axis of the HPC machining center has a rapid speed of 60m/min. The acceleration of each axis reaches 1G, the tool exchange time is 1.3 seconds, and the spindle acceleration/deceleration time is 1.25 seconds (0-15000 rpm), which can greatly reduce the non-machining time and improve the processing efficiency.

High precision

The finite element analysis design ensures that the motion axis does not generate vibration under high acceleration and deceleration motions, thereby ensuring stable and high-precision machining of the machine tool. Linear guide technology is used to ensure the high speed, high precision and high rigidity of each axis.

High reliability

Precise assembly process, strict quality control methods and HPC flexible processing unit have the features of self-optimization, self-monitoring, self-diagnosis and pre-maintenance. Ensure that the equipment can be continuously and stably operated for 4000 hours without failure.

產品介紹

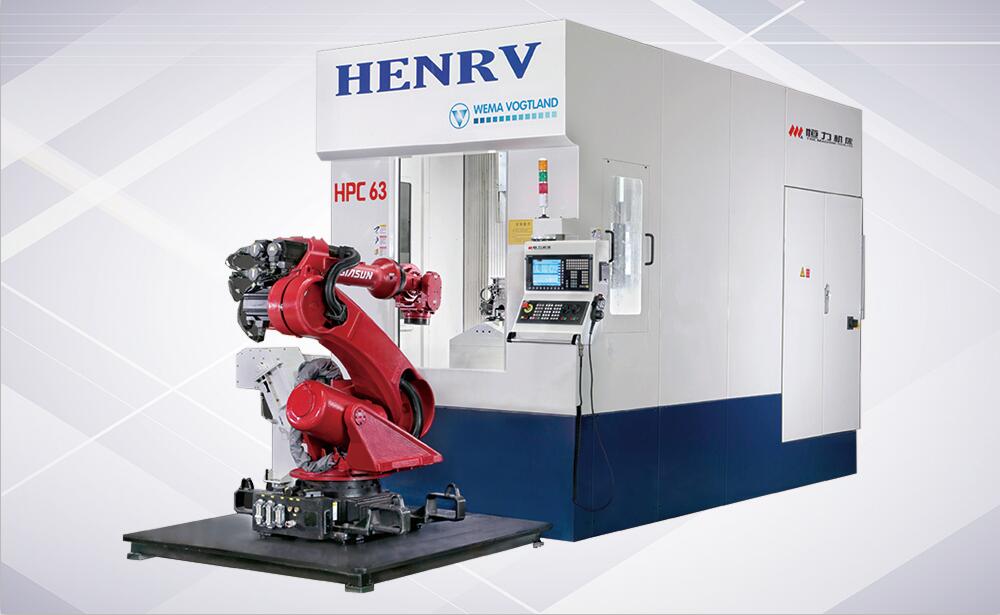

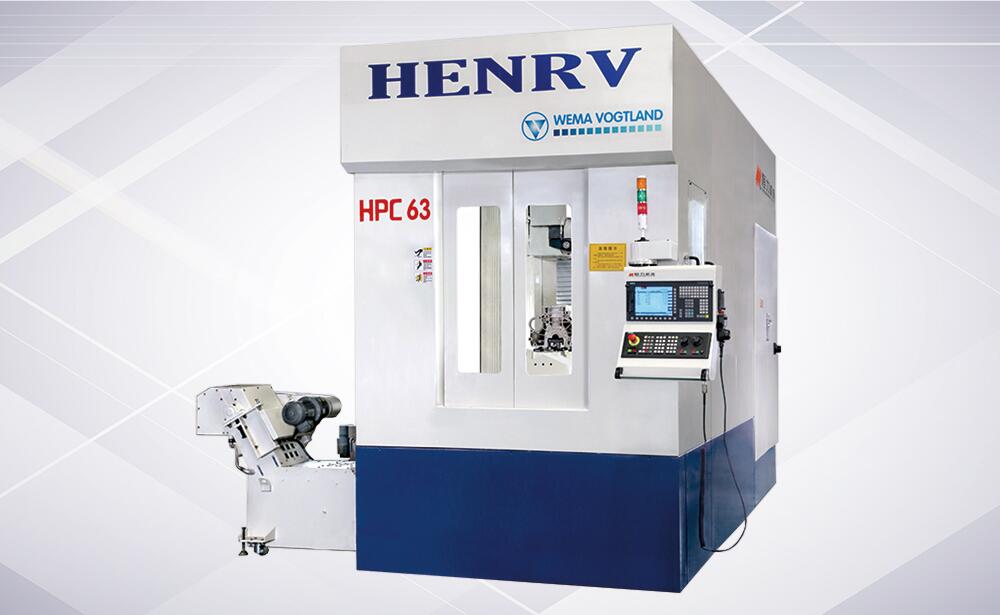

HPC63 Horizontal Machining Center is the world-class high-performance modular machining center of VOGTLAND in Germany. It is a modular machine tool specially developed for high-volume manufacturing of automotive parts. The X-Y-Z triaxial movements of the machine tool are all concentrated on the spindle component. That is, the spindle, the column, and the cross slide form a horizontal three-coordinate unit.
Satisfy the workpiece mounted on the fixture in the fixed state can complete the processing of the workpiece-related content. The product's three-coordinate unit module can be configured as a multi-station special machine tool with the turntable module, or it can be combined with a fixed worktable or a duplex workbench to form a standard horizontal machining center. The machining center can be used in stand-alone mode, and can also be composed of multiple machines to form a flexible processing line and an automatic line, which is suitable for flexible manufacturing of automobile parts such as cylinder blocks and cylinder heads. HPC63 has provided more than 500 cases for Mercedes-Benz, BMW, Volkswagen and other parts around the world. Its performance and reliability have been fully verified. The machine has a small footprint, high cutting rigidity, and durable reliability.

Horizontal Machining Center Specifications

Machine model		HPC40	HPC63	HPC100
Travel	X, Y, Z axis	400x500x450mm	630x500x630mm	1000x630x630mm 1000x800x630mm(Optional）
	B-axis turntable (torque turntable)	360°	360°	360°
	Spindle centerline to turntable distance	180-680	200-700	200-1000
	Spindle face to center of turntable	150	200	200
? Bench	Turntable countertops	φ400	φ400/φ500（可選）	φ500/φ630（可選）
	Workbench maximum load	500kg	600kg	600kg/800kg
	Table indexing angle	0.001°	0.001°	0.001°
	Table height	920	1080	1160
Spindle	Spindle speed	50-15000rpm	50-15000rpm	50-8000rpm
	Spindle taper	HSK-A63	HSK-A63	BT50
	Spindle drive rate	13.2/26/46.3kw
	Spindle torque characteristics	70/100/170N·m		220/470N·M
	acceleration time	0.8s/1.25s(10000/15000rpm)
Feed rate	Fast moving speed	60m/min	60m/min	60m/min
	Processing feed speed	1-20000mm/min	1-20000mm/min	1-20000mm/min
	Acceleration (X/Y)	1g	1g	1g
Automatic tool change	Tool magazine capacity	12/24 (optional)	12/24 (optional)	24
	Maximum Tool diameter	φ165mm	φ165mm	φ250mm
	Maximum Tool length	275mm	275mm	350mm
	Maximum tool weight	8kg	8kg	15kg
	Tool change time (knife to knife)	1.3s	1.3s	2.0s
	Tool change time (cut to cut)	3.6s	3.6s	4.5s
Accuracy	positioning accuracy	±0.005mm	±0.005mm	±0.005mm
Accuracy	Repeatability	±0.003mm	±0.003mm	±0.003mm
Machine specifications	Length x width x height	5000x2000x3000	5000x2000x3000	5000x2500x3000
Machine specifications	Machine weight	10000kg	12000kg	15000kg
